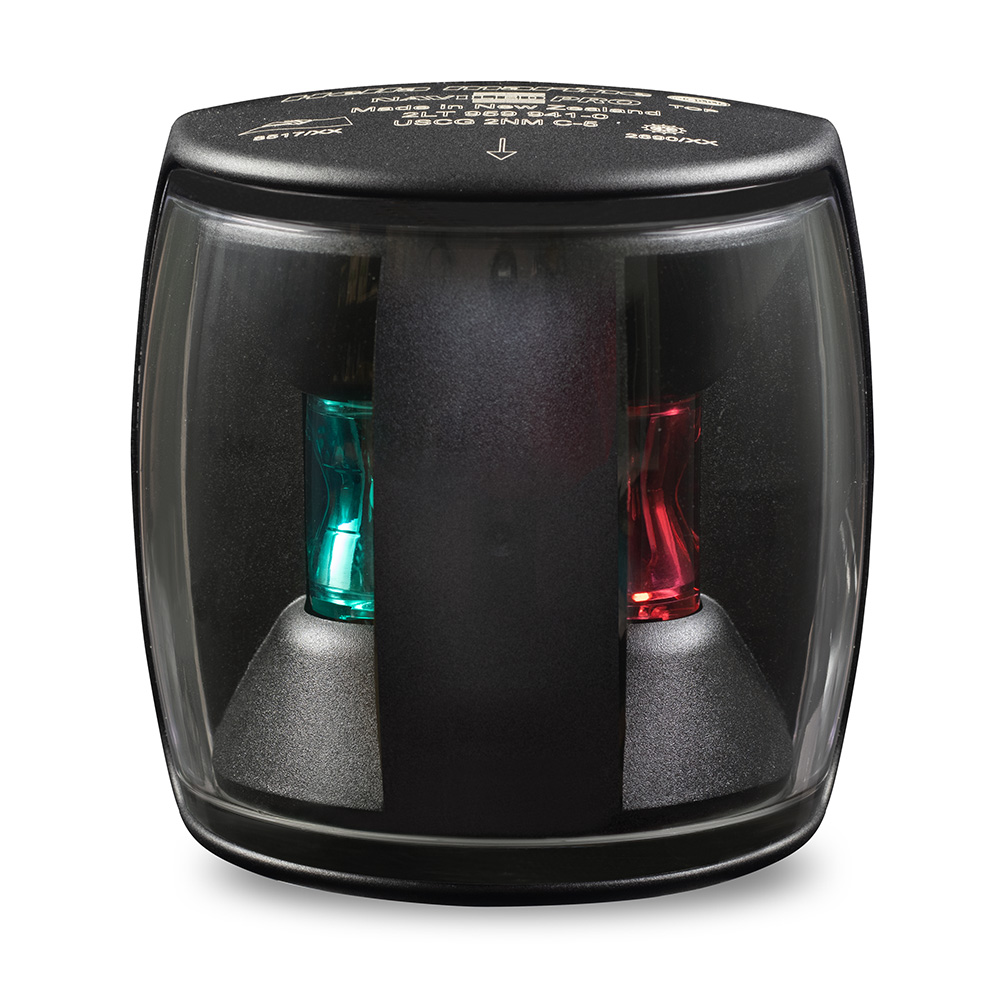

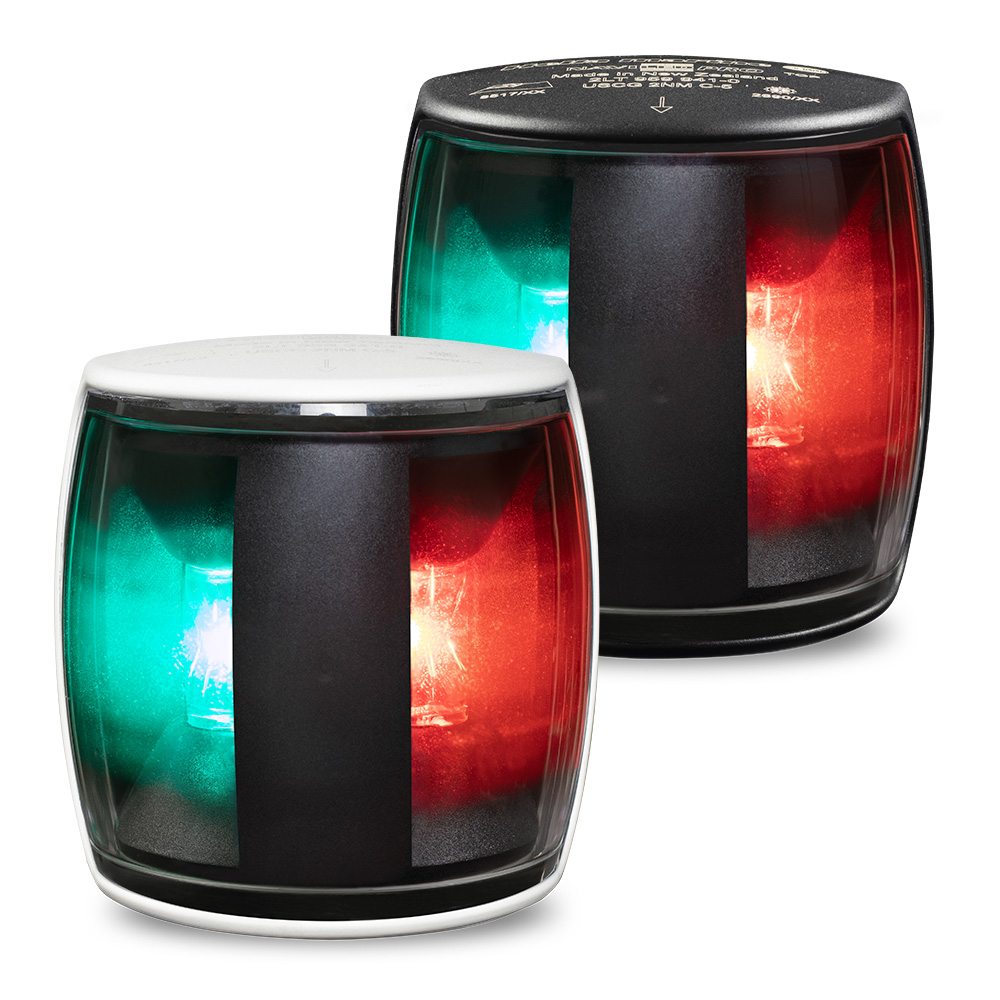

NaviLED Pro Bi-Colour Navigation Light

NaviLED Bi-Colour. Ultra durable, power saving LED navigation lamps for enhanced safety. NaviLED PRO lamps are proven worldwide on commercial, military and recreational vessels.

SKU: NaviLED Pro - Bi-Colour Category: Tags: , , , , , , ,

Hella marine NaviLED products are the leaders in the marine navigation signal lighting industry, having established an enviable reputation for superior light control and reliability. NaviLED PRO Bi-Colour lamps cover vessel requirements up to 50m. Hella Marine takes navigation lighting very seriously. Often a grudge fitment to comply with the rules, these lights are extremely important when navigating at night.

All Hella marine products are designed with components that suppress possible interference, both emission as well as susceptibility to emissions, to the limits prescribed in international standards. This prevents possible interference with radio, communication, navigation and other electrical equipment on board. Hella marine lamps are rated at IP67 and completely sealed.

UV from the sun, corrosive salt air and constant vibration, these lamps are impervious to the marine environment. Ultra low power consumption from the highly efficient LED light source, these lamps also provide exacting light intensity across a wide range of voltage inputs from 9V DC to 32V DC. Made In New Zealand and fully supported by Hella marine’s 5 year warranty, for complete peace of mind.

Material Description Ultra heavy duty Grilamid lens
Minimum Visible Distance 2 Nautical Miles (Yachts and Powerboats)
Cable 2.5m of twin core marine cable
Operating Voltage Multivolt™ 9-33V DC
Voltage Protection Spike protected to +500 volts. Reverse polarity protected to -700 volts
Power Consumption Less than 2 W (<0.17A@12V / <0.08A@24V)
Degree of Protection IP 67 – Completely Sealed
Weight 150g (including cable)
Approvals Wheelmark (MED), BSH, IMO Col Reg 72, USCG, Maritime NZ, CE, UKCA, Red Ensign
